MEDIUM SIZE – MAXIMUM FEATURES

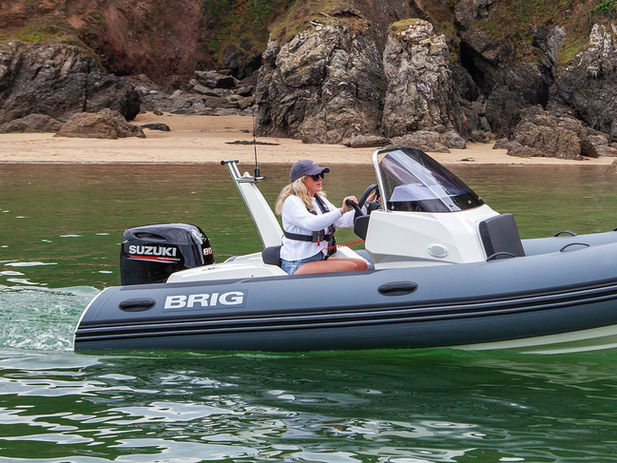

The Eagle 5 is our high-spec compact performance sports RIB, perfect as a luxurious tender for larger Yachts or for those who simply want to ride in comfort and style. A sleek profile and beautiful lines, as well as an extended bow to accommodate a generous sundeck, make the Eagle 5 a highly desirable sports cruiser to be seen in out on the water. There is comfortable seating for 7 passengers and large lockers under each seat provide ample storage. As with all the Eagle series, the Eagle 5 is designed with a reinforced deep ‘V’ hull, along with extended waterline length, extra-wide tubes and a square bow, all of which ensure a stable and dry ride even in heavy seas.
SPECIFICATIONS
Design Category
C
Length (m)
4,95
Width (m)
2,30
Height (m)
1,60
Tube Diameter (m)
0,51
No. of Chambers
5
No. of Persons
7
Maximum Power (hp)
115
Weight of Empty Boat (kg)
430
LCC Mass (kg)
730
Maximum Total Load (kg)
680
Maximum Load (kg)
575
Loaded Displacement Mass (kg)
1410
Fuel Tank (L)
98
Shower Tank (L)
39
Engine Shaft Length (single/twin)
20'
STANDARD FEATURES
Deep V hull
Antiskid deck surface
Hard tube end with 2 antiskid steps on each
Front and rear stowage lockers
Hull ventilation system
Twin self-bailing unit
Built in fuel tank with external deck filler
Front step plate with navigation lights
Front towing bow ring
Rear cleats (bollards)
Rubbing strake
Safety handles & carrying handles
Two paddles & foot pump
Tube repair kit
Accessories bag
Owner’s manual
Steering console
Combined pilot seat/bolster
Steering system (mechanical)r
Steering wheel
Mast for anchor lights
Automatic bilge pump
Battery container
Battery isolation switch
Waterski towing eye
Fuel gauge
Front locker removable cushion
Rear cushion with soft back
Hypalon Fabric
Built-in davit lifting points
OPTIONAL EXTRAS
Steernig system (hydraulic)
Marine compass
Fresh water shower/washdown
Foldable stainless steel ladder with platform
Bow sundeck set with cushions
Lifting slings
Overall cover
Console cover
PVC Fabric
ORCA Hypalon Fabric Impression
ORCA Hypalon Carbon Tube
Custom Hull Gel Coat Colour
Silvertex Luxury Fabric Upholstery
